Easy Top (Weapon/Epic-W/Scarlet-W/Raven)

Easy Top (Weapon/Epic-W/Scarlet-W/Raven) (213900)



Alternative Views:


Price: $599.00
Easy Top (Weapon/Epic-W/Scarlet-W/Raven)

UPC: 702534255535


SKU: 213900
QTY:

Description


IN STOCK Complete purchase by 3pm CST and order will ship same business day.

For a full list of RED DSMC2 products visit our configuration guide.

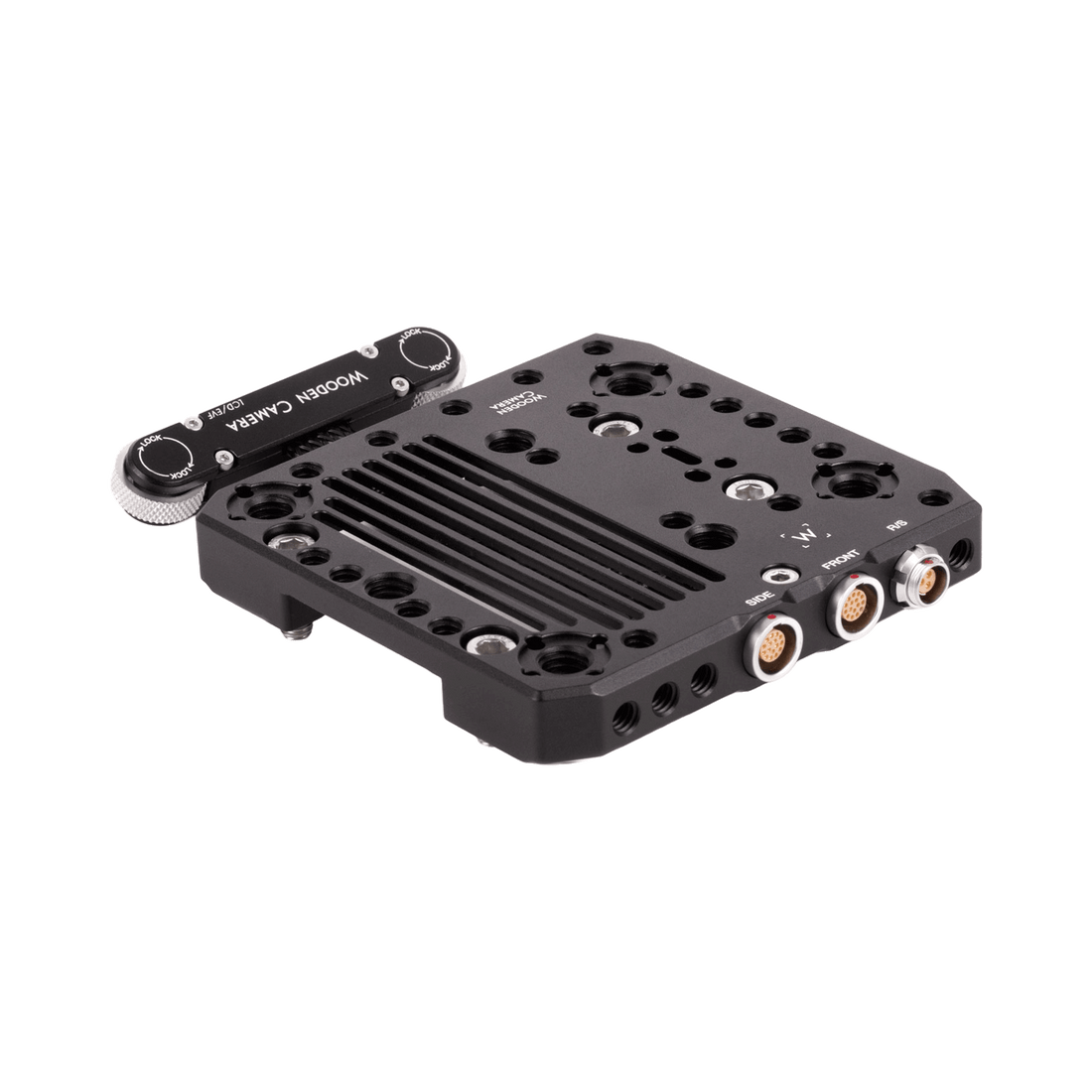

Top plate for RED Weapon, Epic Weapon (Epic-W), Scarlet Weapon (Scarlet-W), Raven, and other DSMC2 cameras. Arrays of 1/4-20 holes in Red spacing, 3/8-16 holes for large accessories, and the ARRI standard accessory mount in several places. Attaches to top of camera by (4) 1/4-20 captured screws.


Two LCD/EVF interfaces are included. One is located under the front portion of the top plate and one is included via the tethered side attachment. Both convert the LCD/EVF pogo pins to the standard 16pin LEMO compatible connectors which are found on the right side of the top plate. These connectors are specially manufactured to allow users to select the orientation in increments of 45 degrees.

A third interface is located underneath the center of the top plate and communicates with the start/stop trigger on top of the camera. A board inside the top plate converts the non standard interface to an ARRI standard 3pin Fischer. Any ARRI standard trigger can be used with the camera and no power trigger is required.

Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

Includes:
(4) 1/4-20 x captured screws

If access to both pogo connectors is needed, choose the Pass Through Top Plate (Weapon/Epic-W/Scarlet-W/Raven).

Easy Top (Weapon/Epic-W/Scarlet-W/Raven) Instructions
